FlashcatUSB Memory Programmers are arguably the most popular and cost effective SPI, I2C, Microwire and JTAG programming devices in use today.
The FlashcatUSB is a USB powered device that can program SPI NOR, SPI NAND, Serial EEPROM, EPROM, I2C, Microwire and JTAG Flash Memory.
It supports various protocols, voltages, devices and features, and comes with open-source software.Compatible with thousands of Flash memory devices.
Connects directly via SPI, I2C or JTAG hardware headers and excels in in-circuit programming using a cable and clip.
Specific hardware support can be added using a easy to use device script feature.
The FlashcatUSB software platform is for programming various memory devices, such as NOR, NAND, and ATMEL.
It offers universal memory support, ECC, parallel, and console modes, and is available free for personal use.
A number of Professional Licences are also available.
FlashcatUSB
Mach1
**Introducing our fastest memory programmer ever!
**Mach¹ has been designed and engineered for performance and high density memory at a realistic price.
Ideal for accessing raw-data of SLC, MLC and TLC NAND devices. Parallel and serial devices are also supported.

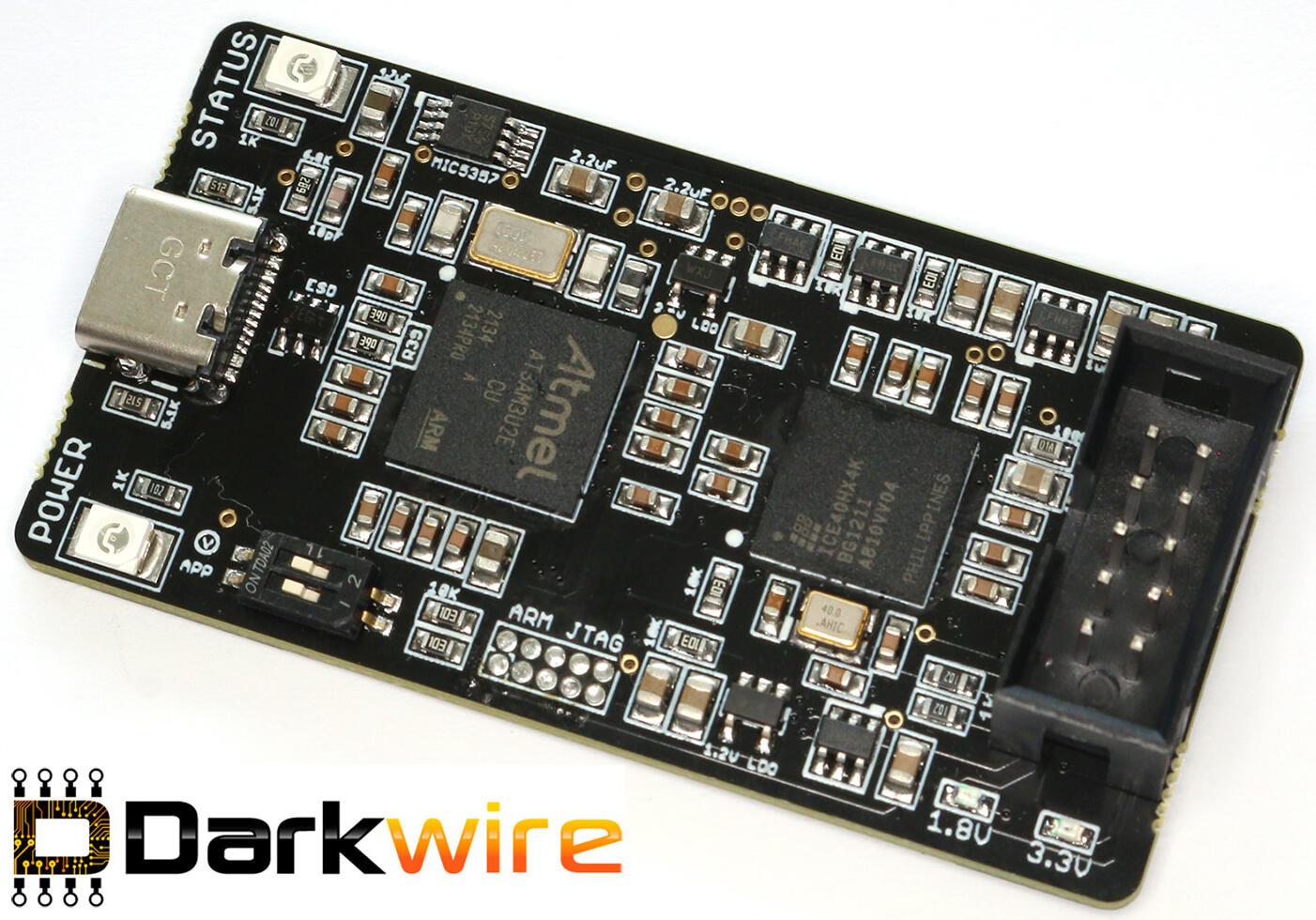

FlashcatUSB Mach¹
Hardware Features and Compatibility:
ARM 32-bit processor with HS USB (480 Mbit/s)
FPGA co-processor with 4000 logic elements
Multi-voltage supported: 1.8V and 3V
NAND / NOR memory supported up to 256-gbit
Data I/O: 8X/16X and DQS supported
ECC supported: Hamming, RS and BHC
SPI and SQI Flash supported
Cypress HyperFlash S26KS/KL memory supported
The FlashcatUSB Range
FlashcatUSB Classic V2.4
FlashcatUSB Professional V5.1
FlashcatUSB xport pcb 2.2
FlashcatUSB Serial Adapters
Serial adapters will fit the Classic, Professional and Xport programmers
SOIC16 SPI Adapter
Supports 300mil SO16 SPI Flash Devices
SOIC8 Clip Adapter
Supports in-circuit SPI programming.
Microwire 93Cxx Adapter
Supports all 93C/LC devices in 150mil package.
WSON8 6x8mm Adapter
Supports SPI Flash Devices in WSON package.
USON8 2x3mm
Supports SPI Flash devices in USON package.
WSON8 6x5mm
Supports SPI Flash devices in WSON package.
TSSOP8 I2C Adapter
Supports I2C devices in TSSOP package from 24C series eeproms.
SOIC8 I2C Narrow Adapter
Supports JEDEC 150mil I2C devices
from the 24C series eeproms.
SOIC8 I2C Wide Adapter
Supports EIAJ 208mil devices from 24C series eeproms
DIP8 I2C & SPI Adapter
For 8 pin DIP SPI Flash and I2C eeproms.
SOIC8 AT45 Wide Adapter
For SO8 EIAJ 208mil AT45 series flash devices
SOIC8 AT45 Narrow Adapter
For SO8 JEDEC 150mil AT45 series flash devices

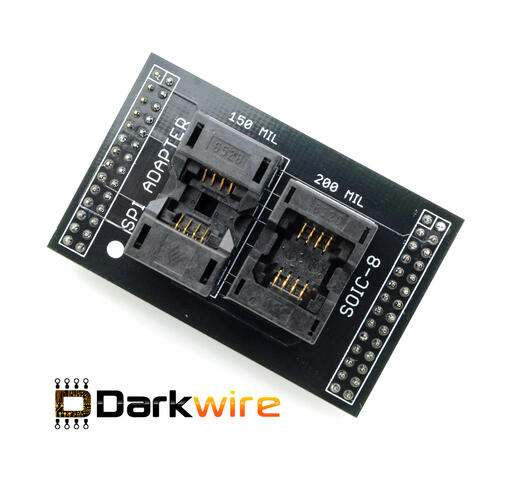

SOIC8 SPI Wide Adapter
Supports EIAJ 208mil SPI devices
SOIC8 SPI Narrow Adapter
Supports JEDEC 150mil SPI devices
1-wire EEPROM devices such as AT21CS01 / 11
Both SOT-23 and SOIC-8 JEDEC
ASUS Motherboard SPI Adapter
Repair and update ASUS Motherboards.
MSI JSPI1 Adapter + Cable
Repair or update your MSI Motherboard via JSPI1
FlashcatUSB MACH1 SOIC8 SPI Adapter
SPI Adapter for SOIC Wide and Narrow - Only for MACH1
FlashcatUSB MACH1 SOIC16 SPI Adapter
SPI Adapter for SOIC16 - Only for MACH1
FlashcatUSB SOIC16 Clip Adapter
Supports in-circuit SPI programming
Mach1 IDC10 Adapter
Allows MACH1 to use any of the above SPI socket adapters. Note: MACH1 does not support I2C, Microwire or 1-Wire protocol.
BGA-24 FAB024
BGA-24 socket for 5 x 5 ball (FAB024). SPI and SQI only (HyperFlash requires parallel socket)
BGA-24 FAC024
BGA-24 socket for 4 x 6 ball (FAC024)
DIP 42 Adapter
Standard 0.1" (2.54mm) pitch using low-cost press-fit IC socket.
Switch selectable for 16mbit or 32mbit devices.
FlashcatUSB Parallel Adapters
Parallel adapters will fit the Professional, Xport and Mach1 programmers
TSOP48 Type C NOR X8
For older variants that migrated from TSOP-40, such as the AM29F016D

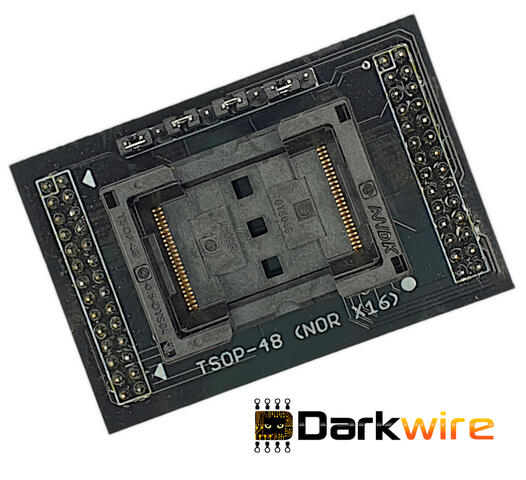

TSOP 48 NOR X16 Adapter
TSOP48 adapter for NOR X16 Devices
TSOP48 NAND X8 X16
SDR ASYNC X8 X16 NAND Adapter
Supports standard ONFI packages with X8 and X16 IO
TSOP56 Type A NOR Flash
TSOP56 Adapter for NOR Flash 29S

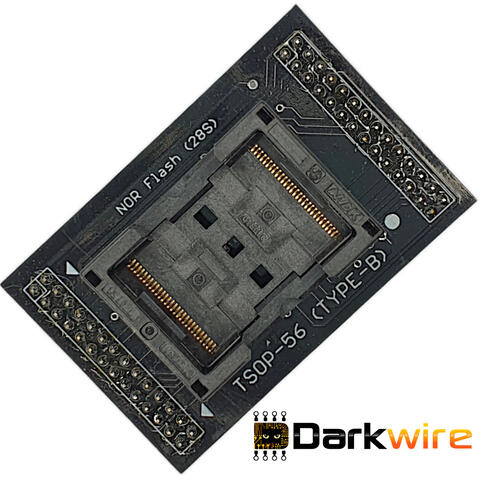

TSOP56 Type B
Supports the common 28 series legacy devices, such as TE28F128J3
TSOP56 Type C
Supports Cypress S29PL-J series of device: S29PL032J, S29PL064J, S29PL0127J
TSOP56 Type D
Supports P30 and P33 Strataflash devices such as 28F256P30 or 28F512P33
DIP32 ZIF Adapter
Adds support for EPROM and OTP such as M27C801 and M27C1001
SOP44 Adapter
Fits standard SOP-44 (500 mil) devices. Switches allow compatability with all types.
TSOP32 Type B Adapter
Supports TSOP-32 narrow packages (8x14mm), such as SST 39SF040
TSOP32 Type A Adapter
Supports TSOP-32 wide packages (8x20mm), such as SST39VF040 and AM29LV040B
TSOP40 Type A
Supports devices such as AM29F080B and AM29F016D

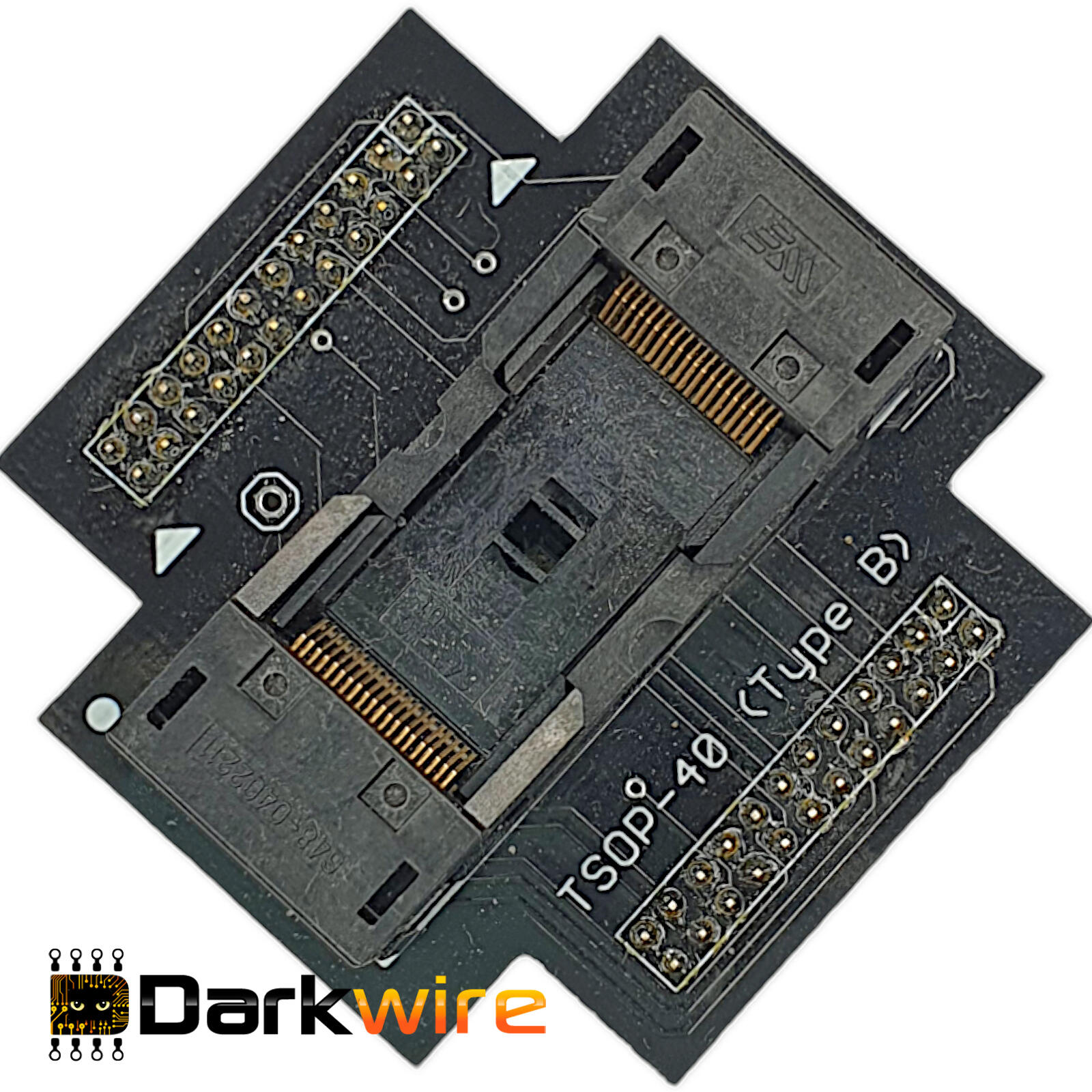

TSOP40 Type B Adapter
Supports device such as AM29LV002, SST39VF016, S29AL032D
DIP40 ZIF Adapter
Standard DIP-40 wide package with 0.1" spacing pitch.
DIP28 ZIF Adapter
Standard DIP-28 wide package with 0.1" spacing pitch. Compatible with 27C512 EPROM and similar

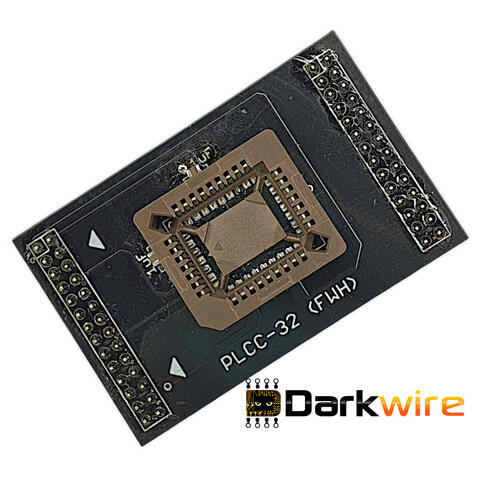

PLCC 32 FWH Adapter
Firmware Hub and LPC EEPROM and Flash devices
PLCC32 MPF Adapter
1.5mm by 14mm, 1.27mm pitch. Supports typical Series 28 and 29 devices
BGA-24 FAB024 5x5 array 8x6mm package
Supports SPI, Semper, and HyperFlash devices
10-Pin IDC Wire Harness
2.00mm Pitch. All wires are labelled for easy connection.
10-Pin IDC Wire Harness
2.54mm Pitch. All wires are labelled for easy connection.
FlashcatUSB Feature Table
Note 1: Software implementation is very slow. It will work but it takes time. The larger the memory the more time it will take.NOTE: All links lead to our main website of Darkwire.com.au
See them all at
Darkwire.com.au
